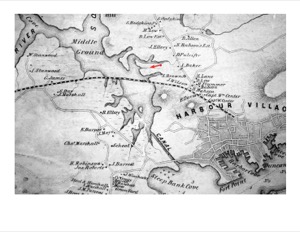

The construction of the Gloucester branch of the Eastern Railroad from Salem in 1848 transformed Cape Ann from a sleepy rural area to a bustling metropolis, with summer visitors from Boston and New York arriving daily and tons of fish and other goods being shipped back and forth to and from points west. New England Inlet with Self-Portrait, 1848 (inv. 77) shows the train, but it is omitted in two sketches of the area. The 1834–35 Mason map notes that John Mason sold a large area of land to the railroad company in 1845.

Done Fudging (or "Done Fudgin'" or "Dunfudgin'") refers to an area along the Annisquam River, just west of the old Meetinghouse Green. It is now the heavily trafficked site of Grant’s Circle, the first rotary in Gloucester after crossing the Route 128 bridge. It was an area central to transportation in Lane’s time, as it is now. Washington Street came to it from the harbor, traversed the Green, and headed north to Riverdale and Annisquam. The train tracks from Boston crossed the Annisquam River at this point after running along the side of the river, initially on a trestle and later on an earth embankment still in use today. There was a town landing for boats that landed all manner of goods and people moving up and down from Annisquam and Ipswich Bay or crossing onto Cape Ann from West Gloucester.

The name refers to the poling of river craft often necessary in the narrow river because of unfavorable wind or tidal flow. It’s a muddy bottom all along the Annisquam River, and poling a boat was called "fudgin'." There is a strong tidal current coming from both directions, from the south and Gloucester Harbor through the Cut and down the river from Ipswich Bay to the north. The tidal flows meet at Done Fudging. If you were “fudgin'” south against the tide draining into Ipswich Bay, when you reached the area of Done Fudging, the draining tide would change direction and carry you effortlessly out to Gloucester Harbor. Or vice versa, either way when you reached that point you were “done fudgin'." The river also broadens out at this point so at a full tide with a decent wind, sails could be raised and the fudgin’ poles put away, at least for a while.

Lane drew and painted a number of pictures from this spot. It must have been relatively easy for him to get there by carriage from the harbor. One of his early residences, Whittemore House on Washington Street, was only a half mile or so away. In contrast to the constant bustle of the harbor, Done Fudging was a peaceful and verdant place. The small farms with their trees and meadows stretched along both sides of Washington Street, while the salt marsh running along the Annisquam River went from emerald green in summer to gold in fall and brown in winter.

Lane did several views looking west upriver from Done Fudging, such as Looking up Squam River from Done Fudging, 1850s (inv. 26). The two most intriguing are nearly identical and include apparent self portraits of the artist (one with crutches, one without) sitting on a rock and drawing the river scene in the company of several large cows (see New England Inlet with Self-Portrait, 1848 (inv. 77)).

Today, the public landing at Done Fudging is one of the City of Gloucester’s most popular and heavily used public landings. It is located adjacent to Gloucester High School and has a small boat launching ramp which is accessed by a paved road.

Wolf Hill was notable as a granite quarry, however the quality of the stone was unreliable. After the first City Hall which was built from Wolf Hill stone in 1869, burned and crumbled, there were warnings not to use stone from that location to rebuild it.

The rivers of northern New England gave rise to a type of freighting scow called a "gundalow," having square ends, a flat bottom, shallow draft, and sturdy construction going beyond the usual standards for this hull type. The term “gundalow”—variously spelled and pronounced—was first used in the late seventeenth century in New England, and was derived from the Old World term “gondola”—also a flat-bottom vessel, but more varied in hull form and uses. (1)

The rivers and estuaries of Essex County, Massachusetts were subject to tidal variations and their surrounding lowlands were salt marshes which yielded prodigious quantities of grass. The more succulent varieties, called “marsh hay” were valued fodder for livestock, while “thatch,” which grew along the tidal creeks, was used for roofing of buildings, bedding for livestock, and compost for gardens. Grasses on higher elevations could be carted away after cutting, but at lower elevations, it was the job of gundalows to bring it to a landing for  distribution. Gundalows for these tasks were relatively small, less than 40 feet in length, propelled by long oars called “sweeps,” and by poles. Occasionally a single square sail was set from a short mast if the landing was distant and downwind. (2)

Larger gundalows, of more elaborate construction, were to be found on the Merrimac and Piscataqua Rivers of Northern Massachusetts and the Maine–New Hampshire boundary, respectively. The Merrimac gundalows probably reached 45–50 feet in length, had long overhangs with a stem post, a skeg with rudder and tiller, heavy framing, and a mast stepped well forward from which a square sail could be set when going downwind. (3)

Not just confined to the Merrimac River, many of these vessels found their ways to the Ipswich marshes via a canal on the mainland side of Plum Island. Smaller and simpler versions of this type were built to work in the salt marshes of Essex and West Gloucester, dispensing with sails and propelled much of the time by poling through narrow tidal creeks. (4)

Lane took notice of a gundalow in his painting Babson and Ellery Houses, Gloucester, 1863 (inv. 10) and the remains of another in his Looking up Squam River from Done Fudging, 1850s (inv. 26). In both cases, the hulls are small and simple in detail, but the latter shows part of its heavy inboard construction. Gundalows of this variety survived in Cape Ann estuaries long enough to be photographed.

Piscataqua River gundalows were the largest and most highly developed of this vessel type, measuring 65 feet or more and rigged with a lateen sail set on a very short mast. When sailing under a bridge, the sail could be dipped without lowering and quickly reset once clear. The hull was modeled with a rounded bow and finely shaped stern; many were fitted with a leeboard so the vessel could sail upwind on the broader reaches of the Piscataqua. (5)

Lane’s depiction of a gundalow in Boston Harbor in the mid-1840s is of the type associated with the Piscataqua River, but having features of both earlier and later examples, together with a rig not known to be used on these craft. The “spoon bow” has generally been regarded as a post-1860 feature, yet Lane’s example has one. The stern has a finely modeled transom which is clearly seen in the underdrawing revealed by infrared scanning. Rudders were supposed to be fitted by the early 1800s, but Lane’s example is steered with an oar. The graceful sheer is another feature considered to post-date Lane’s painting. Finally, the rig consists of a gaff- headed sail set from a very short mast. Short fixed masts setting large lateen sails were common to late gundalows, but the gaff rig depicted is so small that its usefulness is limited if not questionable (6).

Close examination of the infrared scans of this image shows careful drafting of the hull and re-drawing of the crew, sweeps, and steering oar. The cargo of casks is also extensively redrawn to show correct stowage. Whether the changes were due to criticisms from others or the artist’s own evaluation is probably lost to history.

– Erik Ronnberg

References:

1. M.H. Parry et al., Aak to Zumbra: The World's Watercraft, (Newport News, VA: The Mariners' Museum, 2000), 264.

2. Ibid.; and Nancy V. Weare, Plum Island: The Way It Was, 2nd ed. (Newbury, MA: Newburyport Press, Inc., 1996), 43–48.

3. D. Foster Taylor, "The Piscataqua River Gundalow," The American Neptune II, no. 2 (April 1942): 127–39.

4. Weare, 43–48.

5. Taylor, 127–39.

6. Ibid.; and author's observations.

Sloops are one-masted sailing vessels which, in American examples, set fore-and-aft sails but usually no square sails. Thus, staysails, or jibs, are set from the fore stay(s) and a quadrilateral mainsail is set from the mast and spread by a gaff and a boom. The larger sloops would often set a triangular topsail over the main sail. (1)

The sloops depicted by Lane were used in various coastal trades, each with its own requirements, which dictated the sizes and details of their hulls and rigs. Most elegant were the packet sloops, which transported passengers, mail, and higher value goods between specific ports on regular schedules. They usually measured between sixty and seventy-five feet on deck, as dictated by anticipated shipping volume. Finely finished, they usually had stern galleries—a row of windows across the transom with ornamental moldings—and varied color schemes. Examples of packet sloops are in Gloucester Harbor from Rocky Neck, 1844 (inv. 14) (center, middle ground) and Study of Ships, 1851 (inv. 141) (foreground), both of which probably made trips between Gloucester and Boston, or Gloucester and Newburyport. (2)

Another specialized sloop of similar size was the stone sloop, used to ship granite blocks from stone-loading piers around Cape Ann to other ports. They were similar in rig to packet sloops, but of heavier construction with greater hold capacity and absence of decoration. Their stout appearance was augmented by simple color schemes, or even tarred topsides, reflecting the wear and strain imposed by their heavy cargos. Lane depicted these vessels in his painting of Fresh Water Cove from Dolliver's Neck, Gloucester, Early 1850s (inv. 45), with a sloop (at left) preparing to load at wharf-side, and another (at right) sailing out with a cargo. (3)

Sloops of the more work-a-day sort are the most commonly seen examples in Lane’s paintings, most of them appearing in his views of Boston Harbor. Usually deep-loaded and looking weather-worn, they contrast sharply with the packet- and clipper ships which dominate the scene. Sloops of this type are rarely seen in Lane’s paintings of Gloucester Harbor and the Maine coast, although they were certainly needed for short-distance transportation (see Bear Island, Northeast Harbor, 1855 (inv. 24), View of Camden Mountains from Penobscot Bay, c.1852 (inv. 207), Sunrise on the Maine Coast, Mount Desert Island, 1856 (inv. 295)). For coastal Maine, lack of railroads for heavier freight and greater distances between ports made the use of schooners with larger carrying capacity a greater necessity. (4)

In Lane’s views of New York Harbor, a regional sloop variant, the Hudson River Sloop, appears in New York Harbor, c.1855 (inv. 46) (bow view, left) and A Calm Sea, c.1860 (inv. 6) (stern view, right). This type had become prominent in the Hudson River packet trade between New York City, Albany, and beyond to points north and west as far as the eastern terminus of the Erie Canal.  Large vessels for their rigs, they were well-finished and well-kept, reflecting pride of ownership and rivalry among their owners and crews. (5)

– Erik Ronnberg

References:

1. A Naval Encyclopaedia (Philadelphia: L.R. Hamersly & Co., 1884. Reprint: Detroit, MI: Gale Research Company, 1971), 59.  See first definition of "sloop" and definition of "sloop-rigged."

2. Robert Greenhalgh Albion, William A. Baker, and Benjamin Woods Labaree, New England and the Sea (Mystic, CT: Mystic Seaport Museum, 1972; reprinted in 1994), 127–28.

3. Howard I. Chapelle, The History of American Sailing Ships (New York: W.W. Norton & Co., 1935), 300–02.

4. Ibid., 300.

5. Ibid., 298–300.

John Somes was born in Gloucester, Massachusetts in 1745 and served as a privateer during the Revolution. Following the War, Somes was appointed the first president of the Gloucester Bank (founded in 1786) and a state representative. He and Anna Dolliver were married in 1780.

Mr. and Mrs. John Hancock Stacy lived in the eastern half of the Capt. Joe Foster house on Middle Street, while J. L. Stevens, Jr. lived in the other half. Mrs. Stacy was listed as a subscriber who received "Good Harbor Beach" in April of 1862. (1)  Mr. and Mrs. Stacy sold paintings for Lane by lot. (2)

One of Lane's drawings was a source for a painting for Mr. Hancock; another reads "Sketch for Stacy."

(1) Cape Ann Advertiser, April 18, 1862.

(2) Sarah Dunlap and Stephanie Buck, Fitz Henry Lane: Family and Friends (Gloucester, MA: Church & Mason Publishing; in association with the Cape Ann Historical Museum, 2007), 51 n.182, 60 n.211, 77.
